AES-ZA smart diaphragm gas metering
Precise measurement, remote monitoring and reliable gas metering.
Solid build quality, high accuracy and advanced technical details make the AES-ZA diaphragm gas meter a high-grade measuring instrument. It provides precise measurements, consistent measuring stability, a long service life and high reliability. High-grade materials help make the meter resistant to corrosion.
The AES-ZA smart diaphragm gas meter combines the AES-ZA mechanical diaphragm gas meter with a built-in shut-off valve and a smart controller with a communication module.
Suitable for natural gas, town gas and other gases conforming to EN 437.
The product overview states a lithium battery life of more than 10 years. The specification lists a standard battery life of 10 years; actual service life depends on installation location, signal coverage and ambient temperature.
| Parameter | IG1.6S-GI | IG2.5S-GI | IG4S-GI | IWG2.5S-GI |
|---|---|---|---|---|
| Nominal flow rate, Qn (m³/h) | 1.6 | 2.5 | 4 | 2.5 |
| Maximum flow rate, Qmax (m³/h) | 2.5 | 4 | 6 | 6 |
| Minimum flow rate, Qmin (m³/h) | 0.016 | 0.025 | 0.04 | 0.016 |
| Parameter | Specification |
|---|---|
| Maximum operating pressure | 0.5 bar |
| Accuracy class | 1.5 |
| Maximum permissible error (MPE) | ±1.5% for 0.1 Qmax ≤ Q ≤ Qmax ±3% for Qmin ≤ Q < 0.1 Qmax |
| Maximum pressure loss | ≤ 2 mbar |
| Maximum display range | 99999.999 m³ (mechanical/digital) |
| Cyclic volume | 1.2 dm³ |
| Working temperature | -25 to +55 °C |
| Protection level | IP67 |
| Protocol suite | Standard; can be customised (DLMS/COSEM, STS, etc.) |
| Remote communication | LTE Cat.1 (EG915U-EU) |
| Local communication | IR port |
| Optional functions | Temperature compensator, pressure compensator, earthquake detection, gas detector and back-flow blocker |
| Power supply | Replaceable SOCl&sub2; lithium battery |
| Battery life | Standard 10 years. Actual service life is affected by installation location, signal coverage and ambient temperature. |

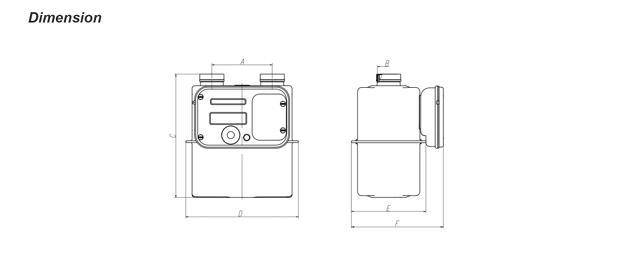

| Reference | Option 1 | Option 2 | Option 3 |
|---|---|---|---|
| A | 90 ± 0.5 mm 110 ± 0.5 mm 130 ± 0.5 mm | 152.4 ± 0.5 mm | 160 ± 0.5 mm |
| B | M26x1.5-6g / M30x2-6g / G¾B / G1B / NPT¾″ / G1¼B; or can be customised | ||
| C | 226 mm | ||
| D | 205 mm | 225 mm | 233 mm |
| E | 134 mm | ||
| F | 168 mm | ||
