Inverters for Load Shedding and Power Outages
Inverter Plug and Play Range
1440 W/2400 VA Inverter Kit with Trolley
Features
Simulated sinewave inverter
Wide input voltage range
Overload and short circuit protection
LCD display for comprehensive information
MPPT
We also supply a 3kw Axpert Inverter with 2x 200AH Mecer Lithium Batteries.
24 month Warranty
Also available: Mecer 1 KW 12v Modified Sine wave Inverter WMPPT with 1 x 200ah Lithium battery. 24 month warranty. On a trolley with single 3 pin plug point. With a load of 220watt they will get close to 7 hours of run time.
| Specifications: Model: IVR-1200MPPT | |
|---|---|
| Capacity: 1200VA / 1000W | Power Factor: 0.83 |
| Input: | Voltage 220-240 VAC |
| Voltage Range 90-280 VAC | Nominal Operating Frequency 50/60Hz |
| Maximum Input Current 10A | Output: |
| Nominal Output Voltage 220-240 VAC | Voltage Regulation (Batt. Mode) +/-10% |
| Output Frequency Range 50/60Hz | Nominal Output Current 5.2A |
| Maximum Inrush Current 10A | Maximum Output Fault Current 6.9A |
| Transfer Time 20 ms typical | Waveform Simulated Sine Wave |
| Battery: | Battery Voltage 12 VDC |
| Maximum Battery Discharging Current 100A | Floating Charge Voltage 13.7 VDC +-0.5 VDC |
| CV Charging Voltage | Lithium Battery 14.6 VDC +-0.5 VDC |
| Cut Off Voltage 10.5 VDC +-0.5 VDC | Maximum AC Charging Current 10 A or 25 A |
| Solar Charger: | Solar Charger Type MPPT |
| Maximum PV Array Open Circuit Voltage 100 VDC | MPP Range @ Operating Voltage 15 ~ 80 VDC |
| Max. PV array Input Power 825W | Max. PV array Power to support 660W |
| Maximum Solar Charging Current 55 A | Maximum Charging Current (Utility +SCC) 55 A |

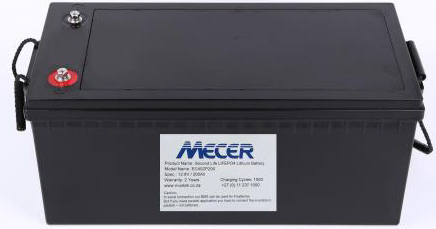

Lithium 200ah 12v Battery 24-month warranty
| Specifications: Lithium 200ah 12v Battery | |
|---|---|
| Normal capacity: 200Ah | Voltage: 12.8V |
| Energy: 2304Wh | Charge Voltage: 14.6V |
| Discharge cut-off voltage: 10V | Charge Method: CC/CV |
| Standard Charge current: 20A | Max. Charge Current: 100A |
| Max. Continuous Discharge Current: 100A | Cycle life:1 500 times |
| Internal Impedance: greater than 50mOhm | Dimensions: L521 x W237.9 x G217.3mm |
| Weight: 23Kg | Working temp: 0 - 45deg C |
| Storage temp: -20degC to 60degC |
These units can also be used to power intercoms, gate motors and garage doors. The system can also provide a backup supply during extended outages for vital equipment such as alarm systems and security cameras.
Figure 1 depicts some of the appliances that are/aren't compatible with an inverter.
The unit is permanently connected to a wall plug so that while mains power is present the built-in battery charger recharges the batteries and keeps them fully charged until a power failure occurs. The equipment requiring backup is also permanently connected to the Inverter via the connector provided. In case of a power failure the backup system automatically switches over to the inverter, which will continue to provide power to the equipment. This is extremely fast and standard equipment like TVs, DSTV decoders, fans, routers etc. are unaffected. The system can also backup computers but it is possible that a very small percentage of computers could reset during the switchover time.
When mains power returns, the whole procedure is reversed and the unit will switch back to mains power and will automatically start re-charging the batteries. Your equipment remains connected to the system even when power is restored. The whole process is fully automatic.
The amount of backup time is determined by the size of the connected battery bank and the load on the system. By removing half of the load, the backup time can be extended to double. For example, if the system is setup to power two computers for 4 hours, by removing one computer the backup time can be extended up to 8 hours. For added functionality, the system includes an LCD display that provides visual feedback of battery charge and load allowing the user to monitor usage without concern.
The recharge time of the batteries depends on how much power was drawn from the batteries during a power failure. The recharge times can take up to 8 hours from a fully discharged battery.
The order to get the best value out of the inverter all non-essential appliances should be switched off. This will reduce the load on the battery and extend its running time. Always keep the inverter plugged into the wall socket to allow for automatic recharge when the mains power returns.
